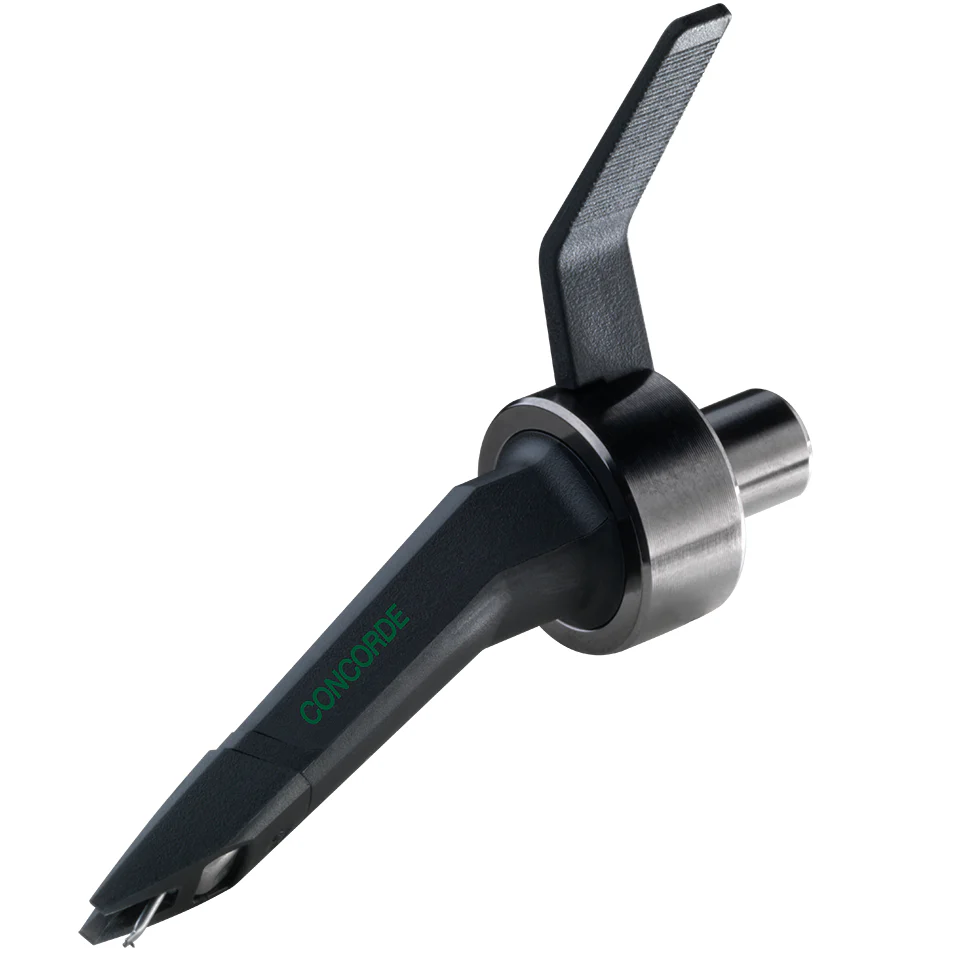

Ortofon CCMKIIMIX-TWIN Concorde MKII MIX - All-Rounder (Twin Pack)

The MIX is a general-purpose model for scratch and back-cueing

• Provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well.
• It offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music.
• With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.
• Excellent price-to-performance ratio.

Specs

• Output voltage at 1000Hz, 5cm/sec. - 6 mV
• Channel balance at 1kHz - 1,5 dB
• Channel separation at 1kHz - 20 dB
• Channel separation at 15 kHz - 15 dB
• Frequency range at -3dB - 20-20.000 Hz
• Tracking ability at 315 Hz at recommended tracking force - 100 μm
• Compliance, dynamic lateral - 14 μm/m N
• Stylus type - Spherical R 18 μm
• Tracking force range - 2 - 4 g
• Tracking force recommended - 3 g
• Internal impedance, DC resistance - 700 Ohm
• Internal inductance - 450 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-600 pF
• Cartridge weight - 18,5 g
• Replacement stylus unit - MIX
