Electro-Voice EVOLVE50 Portable Column Speaker Array with Sub

Designed to deliver an uncompromising combination of light weight, low‑profile looks, and superior Electro‑Voice audio quality, the EVOLVE 50 sets a new performance standard for powered column systems.

The perfect choice for DJs, mobile entertainers, bands, singer/songwriters, and any venue where high‑output portable sound is needed — no other column system currently available sounds as good, looks as good, or is as easy to use. The smooth clarity of the EV sound in a sleek new form factor.

Features

CLEAN, COMPACT DESIGN — BUILT TO BLEND IN
Pure, accurate Electro‑Voice audio performance in a sleek new form factor. The perfect choice for DJs, mobile entertainers, bands, singer/songwriters and any venue where high‑output portable sound is needed — no other column system currently available sounds as good, looks as good, or is as easy to use. Acoustically powerful, aesthetically discreet: column sound evolves to the next level.

EASY TRANSPORT & SETUP

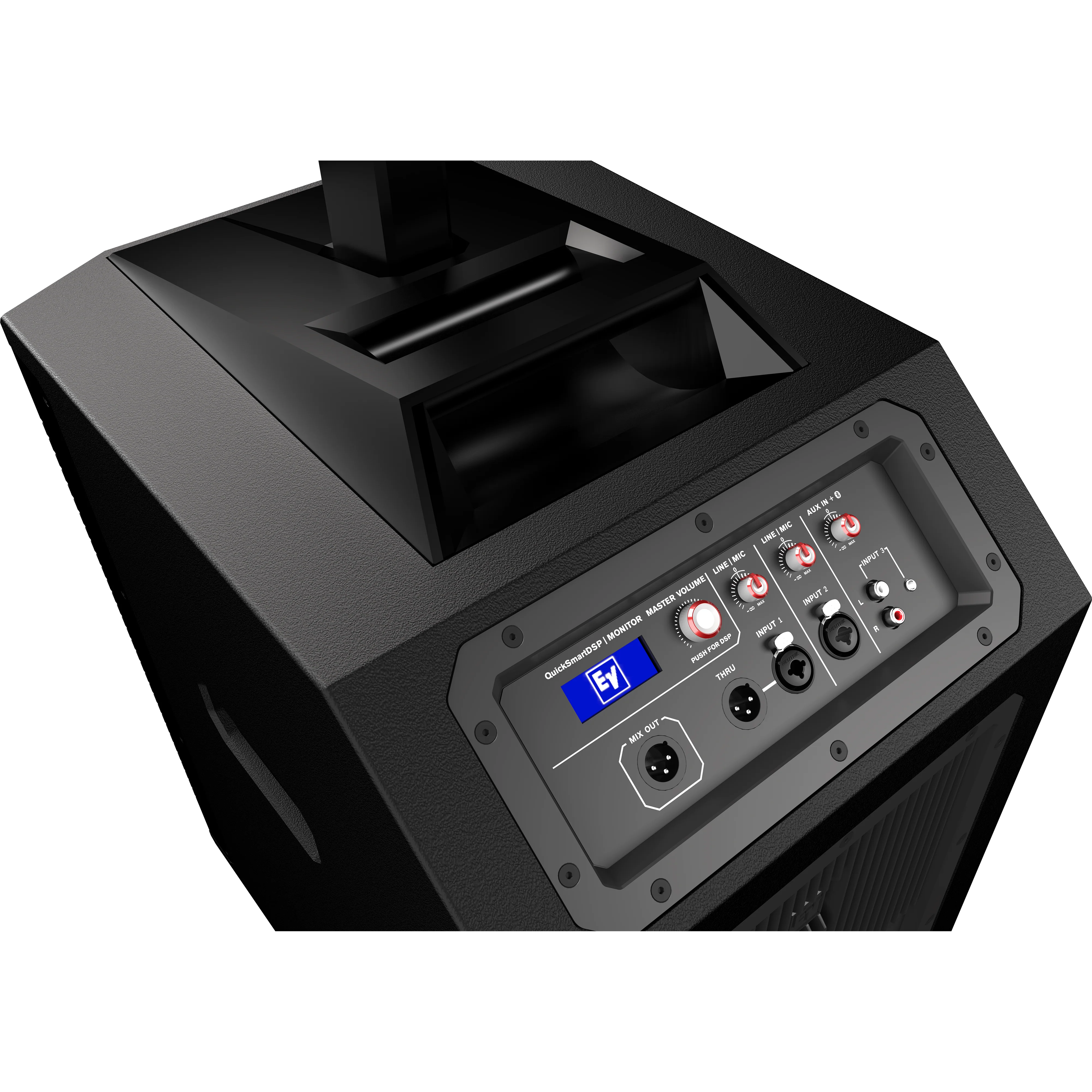

Ergonomically designed handles on both the array and the sub enhance portability. Integrated speaker wires allow quick, clean connection. Angled interface gives user easy access to make adjustments and connections on input panel.

PROFESSIONAL PA PERFORMANCE
Legendary EV audio quality via eight 3.5‑inch full‑range neodymium drivers and a 12‑inch subwoofer, powered by a three‑channel amp for high output. Cutting‑edge components and tuning provide full‑sized sound in a super‑streamlined, plug‑and‑play format.

WIDE, EVEN COVERAGE
Fill the room. Proprietary waveguides provide ultra‑wide 120° horizontal coverage and array‑formed 40° asymmetrical vertical pattern control. No energy is wasted — exceptional audience coverage and clarity from front to back.

QUICKSMART DSP
Best‑in‑class processing via EV’s signature single‑knob user interface with LCD. Easy operation via four presets (Music, Live, Speech, Club), threeband EQ, five user‑programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.

WIRELESS CONTROL & MONITORING
New Bluetooth®* QuickSmart Mobile makes it easy to dial‑in settings in real‑time from in front of the system. Quickly configure, control and monitor of up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.

HIGH‑QUALITY BLUETOOTH®* AUDIO
For convenient streaming of background music or musical accompaniment direct from any mobile device.

NOW AVAILABLE IN WHITE
An excellent choice for weddings, houses of worship, corporate seminars, and more. UV tested and verified for color stability across every component surface. Matches other white‑finish EV loudspeaker models.

Specs

• Shipping Weight 69lbs (31.3kg)
• Weight Net 57.87lbs (26.25kg)
• Depth Sub: 18.5 in; 471mm Column: 6.9 in; 172mm Pole: 2.2 in; 55mm
• Width Sub: 13.6 in; 345mm Column: 4.0 in; 102mm Pole: 1.9 in; 48.5mm
• Height Sub: 20.9 in; 230mm Column: 32.5 in; 825mm Pole: 36.6 in; 929mm
• Grille Steel with powder coat
• Enclosure Material sub – 15mm plywood, column – poly composite, pole – aluminum
• Connector Type 2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output
• Crossover Frequency 200Hz
• HF Power Handling 500Watts
• LF Power Handling 500Watts
• Coverage (Nominal -6 dB) V 40°
• Coverage (Nominal -6 dB) H 120°
• Max. SPL/1m (calc) 127dB
• Frequency Response (-3 dB) 43 Hz – 20 kHz
• Power Consumption 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
• Power Rating 1000W
• Woofer Size 12inch
• Frequency Range (-10 dB) 37 Hz – 20k Hz
• Powered or Passive Powered
• Family EVOLVE 50
• Speaker Type Full-Range
