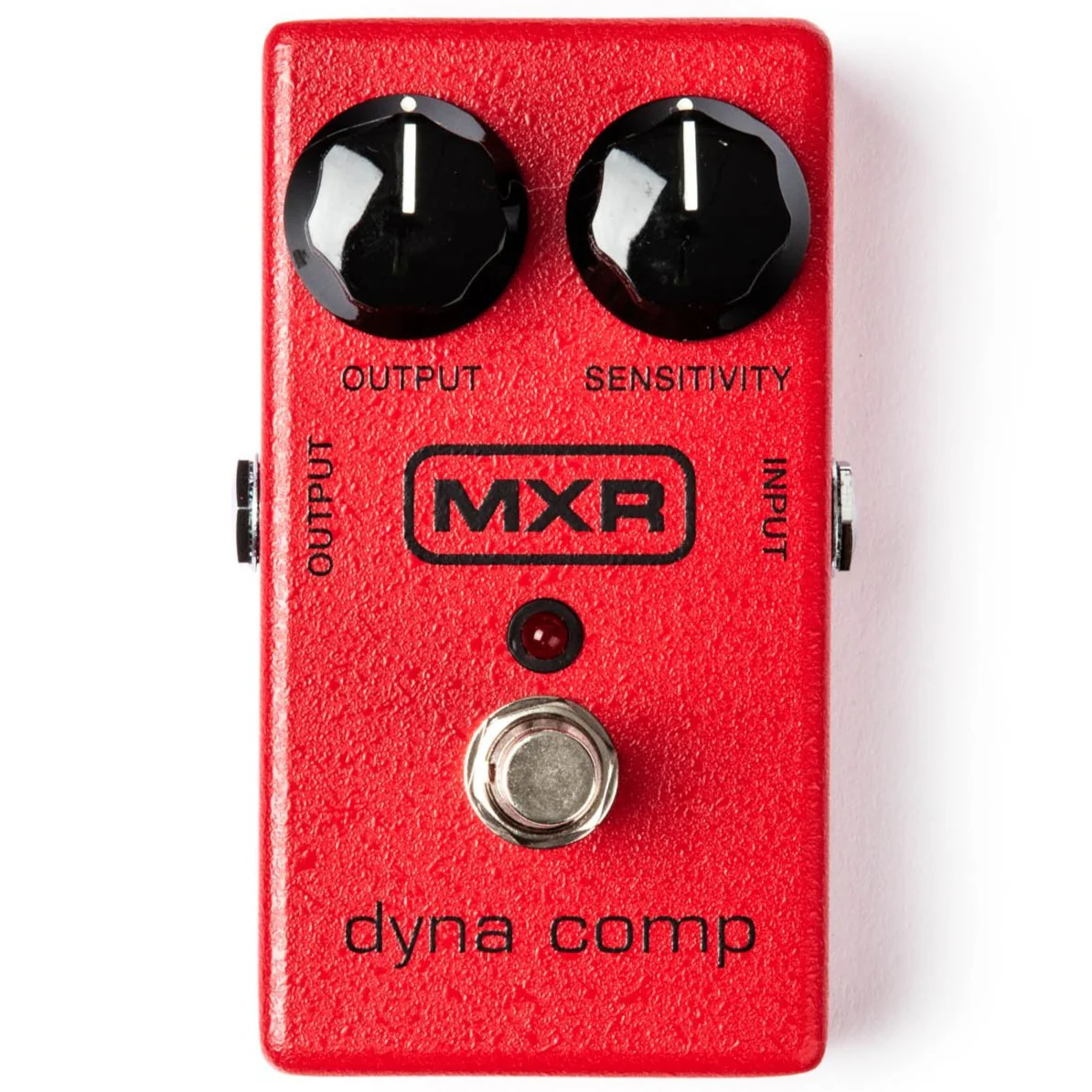

MXR M102 DynaComp Compressor

The Dyna Comp Compressor can tighten up your signal, add rich sustain, or create the percussive and clicky sound heard on numerous hit records.

• This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

The Long Story

The Dyna Comp Compressor is one of the most popular compressors of all time. Whether you want to tighten up your signal, add rich sustain, or create the percussive and clicky sound heard on numerous hit records, this pedal is straightforward and easy to use. For these reasons, the Dyna Comp Compressor has been the secret weapon on countless pedalboards for years.

Controls

Specs

• Input Impedance 1 MΩ
• Output Impedance 10 kΩ
• Nominal Input Level -5 dBV
• Nominal Output Level -12 dBV
• Noise Floor* 95 dBV
• T.H.D 0.2% Typ. at -20 dBV, 1 kHz
• Max Compression 36 dB
• Attack Time 5 ms
• Release Time 1 s
• Bypass True Hardwire
• Current Draw 3.3 mA
• Power Supply 9 volts DC
